How are curtain walling repairs matched to the existing façade?

Matching curtain walling repairs to an existing façade requires more than selecting glass with a similar appearance. GlassPlus UK establishes how the original system was assembled, identifies which components can be retained and specifies replacement materials that are suitable for the surrounding construction. The aim is to make the completed repair sit naturally within the elevation while preserving the intended function of the curtain walling.

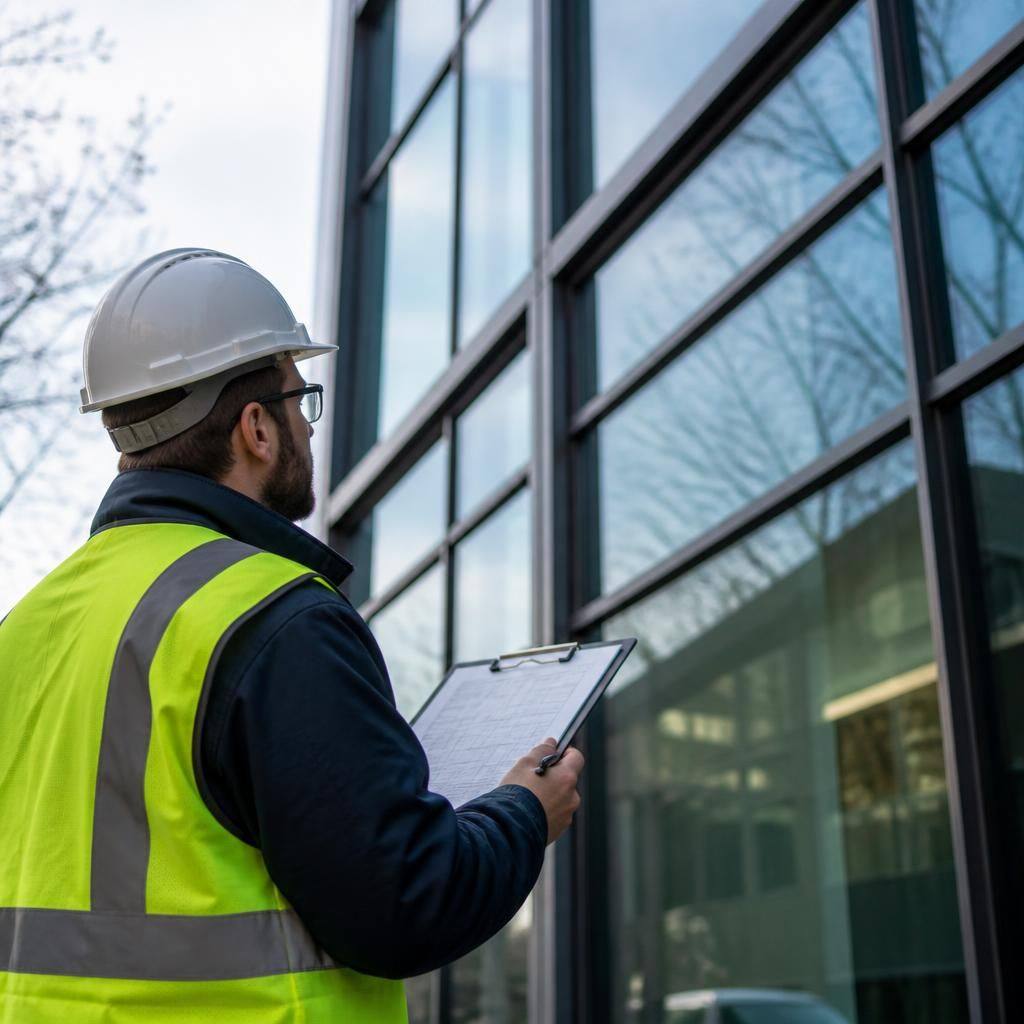

The process normally starts with a detailed review of the affected area. Existing drawings, previous maintenance information and photographs can help establish the original specification, although these records are checked against the installation itself. Site conditions may differ from the original design, particularly where earlier repairs or alterations have taken place. The survey therefore considers the panel arrangement, mullions, transoms, pressure plates, caps, seals and adjacent interfaces rather than treating the damaged pane as an isolated item.

• Glass construction: The replacement is assessed for its make-up, thickness, safety classification and arrangement, such as single glazing, insulating glass or laminated construction.
• Appearance: Factors including tint, reflectivity, transparency and any visible coating are considered from the relevant viewing distances and angles. A sample or comparison with adjacent panes can assist where the difference is difficult to judge from photographs.
• Panel position: A pane at ground level, a corner or a prominent entrance may be viewed differently from one higher in the elevation. The location affects how close the visual match needs to be and how the repair will be accessed.
• Framing and seals: The glazing rebate, gaskets, beads, pressure plates and cover caps are checked to confirm that the proposed unit can be installed without forcing incompatible parts into the existing frame.
• Interfaces: Where the curtain wall meets masonry, a shop front, roof edge or another façade element, the repair specification accounts for movement, weather seals and junction details.

Dimensions are taken from the actual opening rather than relying solely on nominal system sizes. This helps identify variations caused by building movement, previous adjustments or manufacturing tolerances. The survey also records whether the frame is distorted, damaged or allowing water ingress. If the surrounding support is defective, replacing the glass alone may not provide a suitable repair, so the scope can distinguish between the visible damage and any associated work.

Visual matching is considered alongside technical compatibility. A pane that looks close to the original may still be unsuitable if its weight, thickness, edge detail or safety properties do not work with the existing curtain walling. Conversely, a technically appropriate unit may appear noticeably different if its coating or colour does not correspond with neighbouring panes. GlassPlus UK balances these considerations when preparing the repair specification, rather than selecting a replacement on appearance alone.

Where the original product or finish is no longer readily identifiable, the available evidence is compared with the current condition of the façade. The proposed solution can then be assessed against the adjacent glazing, the intended use of the building and the requirements applying to the work. This is particularly important in occupied commercial premises, where a visually inconsistent repair can be prominent to customers, staff and visitors.

The specification should make clear which elements will be replaced, which will remain and how the new work will connect with the existing installation. It should also identify any assumptions requiring confirmation, such as concealed fixing arrangements or the condition of retained seals. Clear definition at this stage helps businesses compare quotations on a like-for-like basis and reduces the risk of an apparently minor repair expanding unexpectedly once work begins.

Before installation, the proposed glass and associated components can be checked against the recorded dimensions and the agreed appearance. During the work, care is taken to protect adjacent panes, frame finishes and internal areas. Following installation, the repaired section is reviewed in relation to the surrounding façade, with attention to alignment, seating, seals and visible differences. Relevant details can be recorded for future maintenance, giving the building manager a clearer reference if further damage occurs.

GlassPlus UK brings more than 30 years of industry experience to this assessment-led approach. Its repair work is carried out with regard to current building and safety regulations, while the specification remains focused on the particular curtain walling system and the commercial setting in which it is installed.
